Model

Brand: GIGABYTE

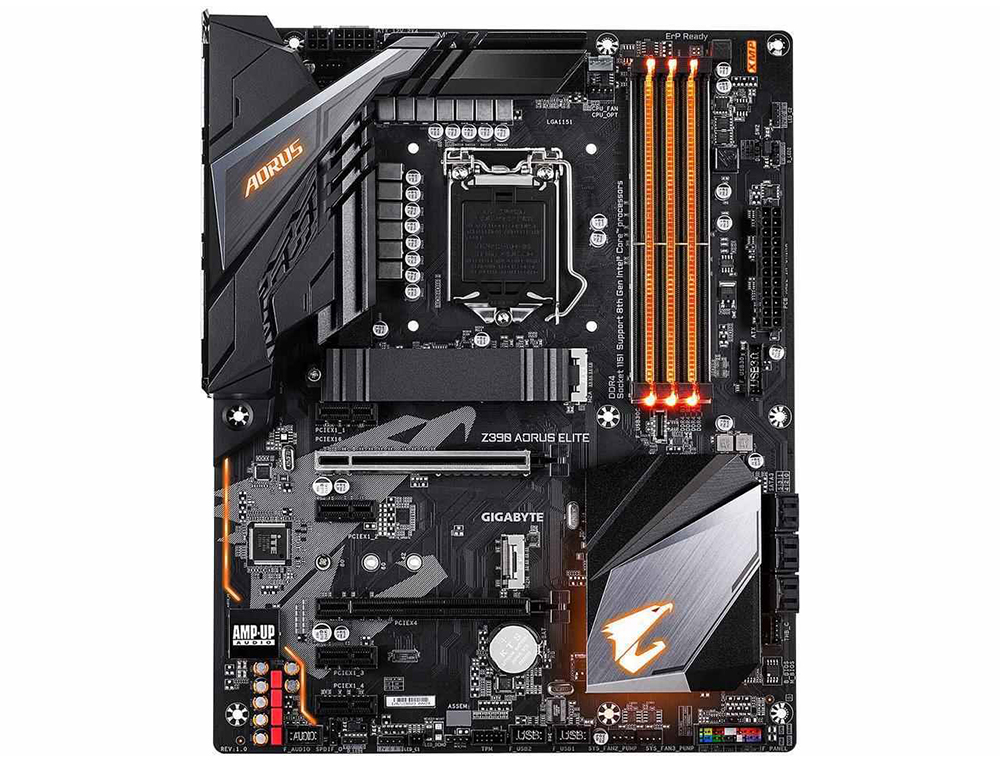

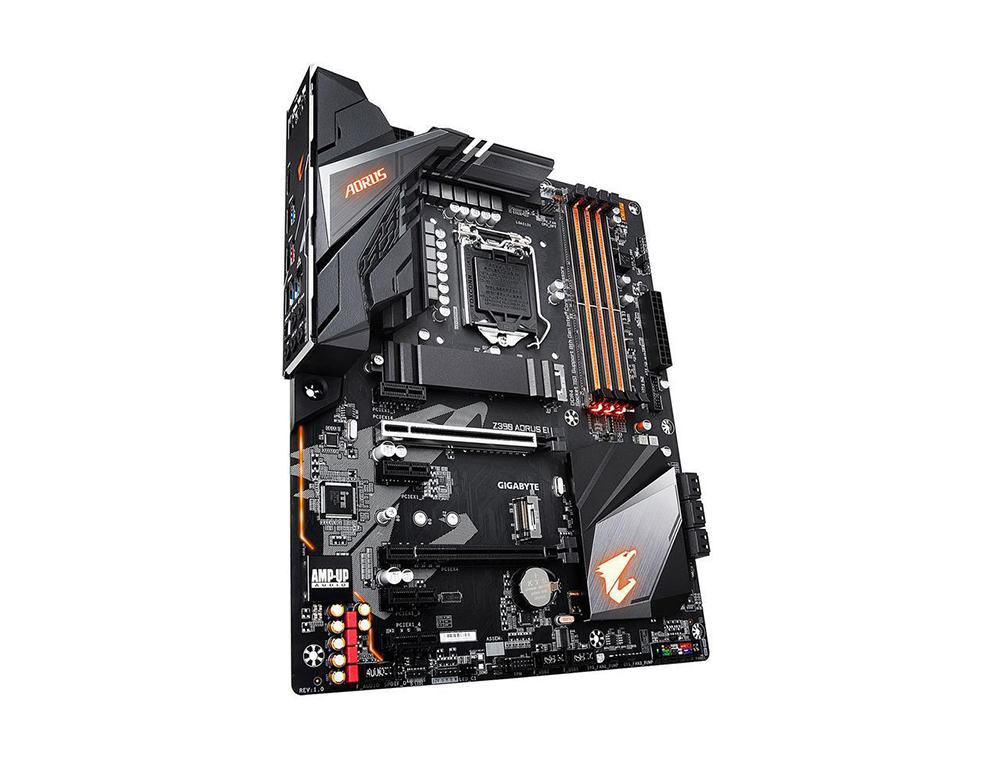

Model: Z390 AORUS ELITE

Supported CPU

CPU Socket Type: LGA 1151 (300 Series)

CPU Type:

Support for Intel 9000 processors and 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets

Chipset: Intel Z390

Onboard Video

Onboard Video Chipset:

Integrated Graphics Processor – Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1GB

Memory

Number of Memory Slots: 4脳288pin

Memory Standard: DDR4 2666/ 2400/ 2133

Maximum Memory Supported: 64GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16:

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)

PCI Express x1

4 x PCI Express x1 slots
* The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices

SATA 6Gb/s: 6 x SATA 6Gb/s

M.2:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)

Intel Optane Ready: Yes

SATA RAID: 0/1/5/10

Onboard Audio

Audio Chipset:Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.

Audio Channels:

2/4/5.1/7.1-channel
Support for S/PDIF Out

Onboard LAN

LAN Chipset: Intel GbE LAN chip

Max LAN Speed: 10/100/1000Mbps

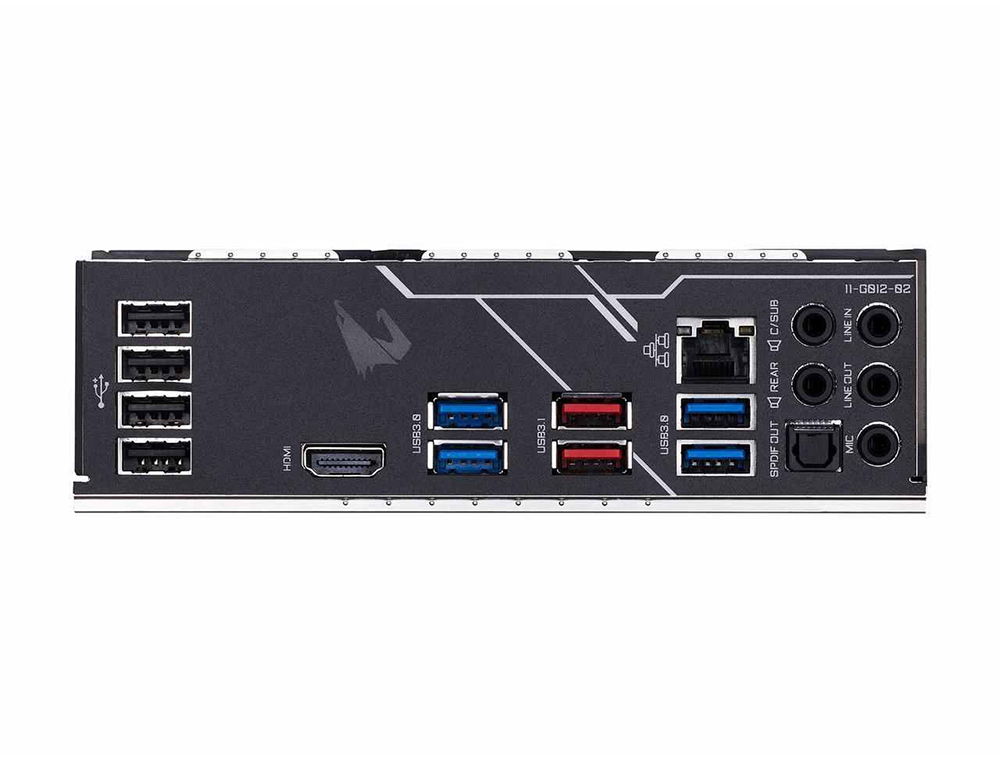

Rear Panel Ports

HDMI: 1 x HDMI

RJ45: 1 x RJ45

USB 3.1:

4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)

USB 1.1/2.0: 4 x USB 2.0

S/PDIF Out: 1 x Optical

Audio Ports: 5 Ports

Internal I/O Connectors

Onboard USB:

1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

Other Connectors:

1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumper

Physical Spec

Form Factor: ATX

LED Lighting: RGB

Dimensions (W x L): 12.0″ x 9.6″

Power Pin:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Features

Features:

Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
