Brand: ASRock Series Fatal1ty
Model: Z370 Gaming K6
Supported CPU :
CPU Socket Type: LGA 1151 (300 Series)
CPU Type:
Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies:
Turbo Boost Technology 2.0
Chipsets
Chipset: Intel Z370
Onboard Video
Onboard Video Chipset:
Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
– Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
– DirectX 12
– HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG, VC-1
– Max. shared memory 1024MB
* The size of maximum shared memory may vary from different operating systems.
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports 4K Ultra HD (UHD) playback with DVI-D and HDMI Ports
Memory
Number of Memory Slots: 4×288pin
Memory Standard:
DDR4 4333+(OC)*/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock’s website for more information.
* 8th Gen Intel CPU supports DDR4 up to 2666.
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
Expansion Slots
PCI Express 3.0 x16:
3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*
* Supports NVMe SSD as boot disks
PCI Express x1:
3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots:
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
15µ Gold Contact in VGA PCIe Slot (PCIE2)
Storage Devices
SATA 6Gb/s
6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
* M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
* M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
M.2:
1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID: 0/1/5/10
Onboard Audio
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
Onboard LAN
LAN Chipset: Intel I219-V
Second LAN Chipset: Intel I211-AT
Max LAN Speed: Dual 10/100/1000Mbps

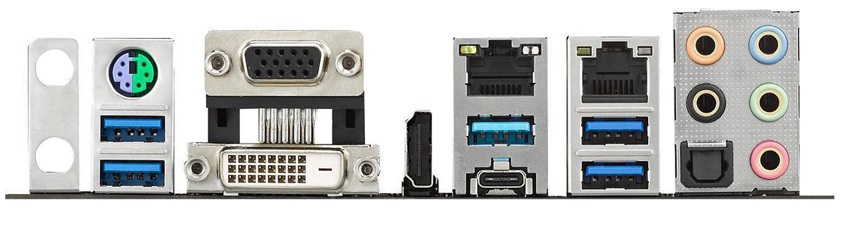

Rear Panel Ports
PS/2: 1 x PS/2 keyboard/mouse port
Video Ports:
1 x D-Sub Port
1 x DVI-D Port
HDMI: 1 x HDMI
RJ45: 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.1:
1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Intel Z370) (Supports ESD Protection)
* 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included.
* Ultra USB Power is supported on USB3_34 ports.
* ACPI wake-up function is not supported on USB3_34 ports.
S/PDIF Out: 1 x Optical
Audio Ports:
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Antenna Connectors: 2 x Antenna Ports
Internal I/O Connectors
Onboard USB:
3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel Z370) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel Z370) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)
Other Connectors:
1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU Optional/Water Pump Fan Connector (4-pin)
* The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin)
* The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
* CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Thunderbolt AIC Connector (5-pin)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x XMP Switch
Physical Spec
Form Factor: ATX
LED Lighting: RGB
Dimensions (W x L): 12.0″ x 9.6″
Power Pin:
1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
